ABOUT PRODUCT
-
Gas Cartridge Structure
Gas Cartridge Structure
We offer two types of cartridge

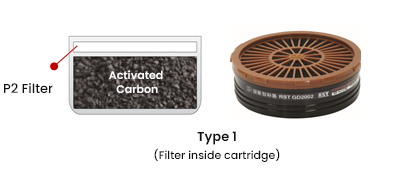

Type 1: Filter Built-in Cartridge for single use

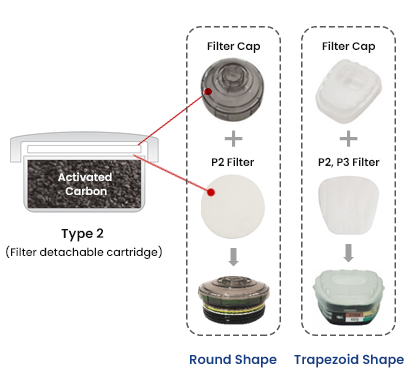

Type 2: Reusable cartridge
Reusable cartridge which dust filter (P2, P3) can be attached depending on work environment. It offers two types of detachable filter options
- Round Shape
- Trapezoid Shape
Mask Cartridge: Type
| Gas Type | Color Code | ||
| Organic Vapor | ■ Brown |  |
|
| Acid | Halogen | ■ Gray |  |
| Hydrogen Sulfide | |||
| Hydrogen Cyanide | |||
| Sulfurous Dioxide | ■ Yellow | ||
| Ammonia | ■ Green |  |
|
Gas Mask: Cartridge Performance
Trapezoid type cartridge
- Provides longer hour use compared to round cartridge
-
Round Shape -
Trapezoid Shape

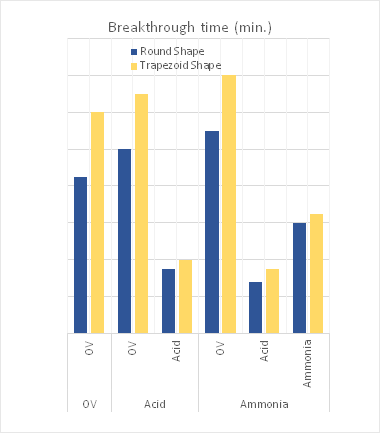

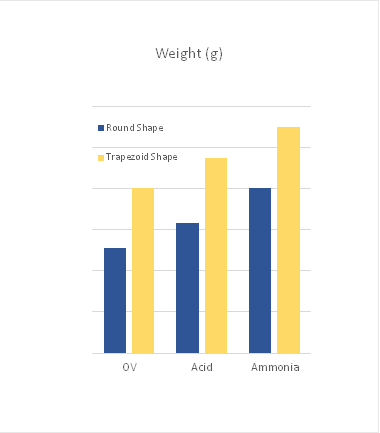

Performance Comparison Table
- Based on RST internal testing data for RM7200 series
- Data is an approximate range

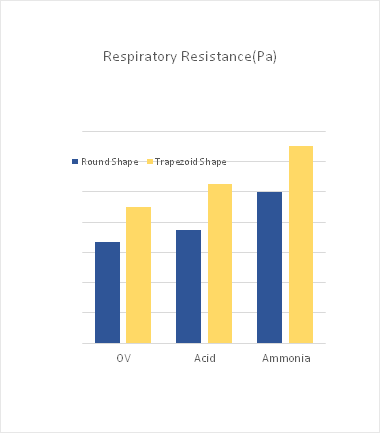

- Respiratory resistance based on 95 I/min
